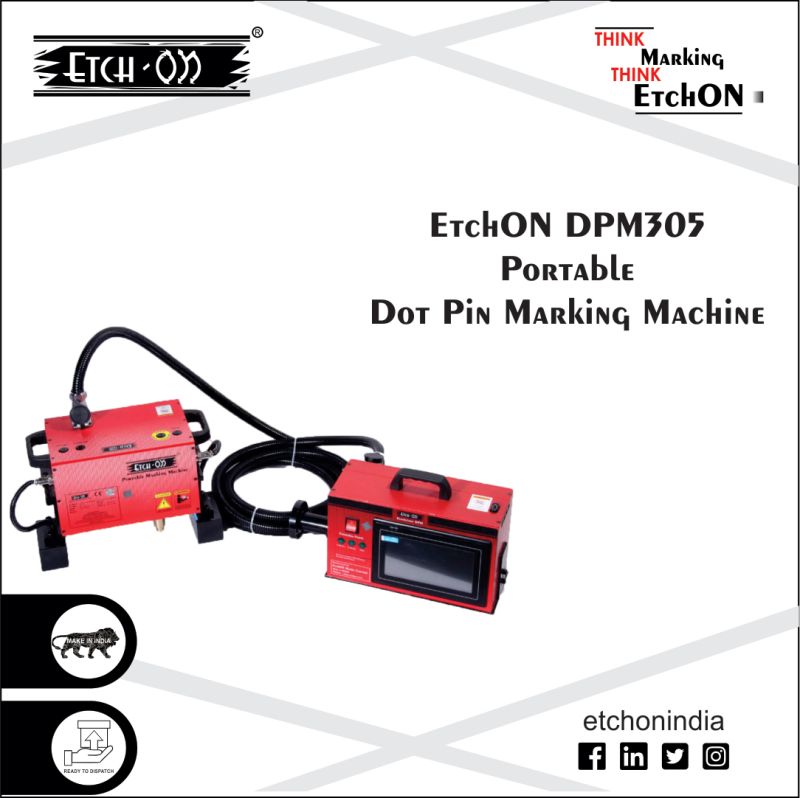

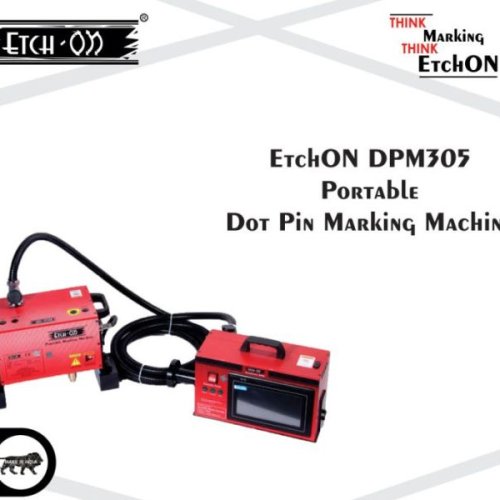

Portable Dot Pin Marking Machine (DPM305)



This Portable Dot Pin Marking Machine (DPM305) model is Touch Screen Controlled Portable Portable Dot Pin Marking Machine suitable for signing on metal material which size could be larger than the marking head like big pipes. Printing scope of this Portable Dot Pin Marking Machine is 145 - 55 mm (20 Degree Deviation), and it has an E-Magnetic base for holding on large size.

In this Portable Dot Pin Marking Machine, the system controller is connected with the marking pin assembly with 10 meter cable and supports flat marking only. The stylus pin dotting on the surface can be carried out at a high frequency, and the mark logo can also be created. This Portable Dot Pin Marking Machine can easily mark alphanumeric, date, character, numbers, series No., VIN codes, graphs, etc.

Technical Specifications

  • Controller :Standalone 7 LCD Touch Screen Controller
  • Marking Head : Portable with E-Magnet
  • Marking Speed : 2-3 character/s
  • Marking Depth : 0.1  1 mm
  • Marking Scope : 145 Ã� 50 mm / 20 Degrees
  • Pin Hardness : HRC92
  • Work Piece Hardness allowed :
  • Power : 110 ~ 230 V / 50~60 Hz
  • Application : Applicable for Metals & Non Metals
  • Warranty : 12 Months Standard Warranty + 1 Month Extended Warranty

Specifications

Type Dot Pin Marking Machine
Certification CE Certified
Weight 100-500kg
Color Available in Many Colors
Voltage 380V
Automatic Grade Automatic
Power 3-5kw
Driven Type Elecric
Warrenty 2 Years

Additional Information

Product Code Portable Dot Pin Marking Machine (DPM305
