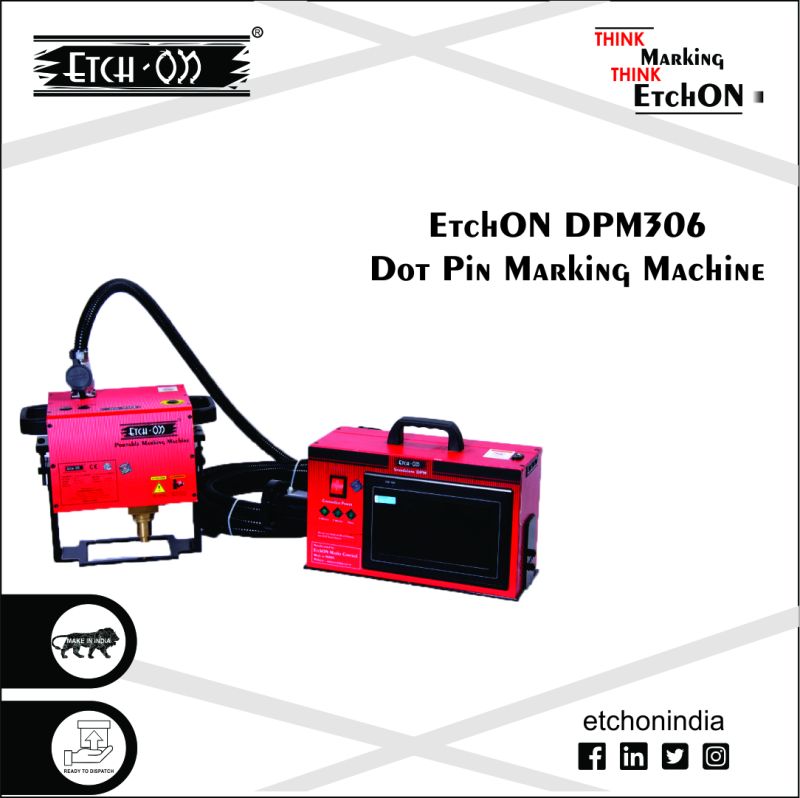

Portable Dot Pin Marking Machine (DPM306)



Portable Dot Pin Marking Machine (DPM306) model is Touch Screen Controlled Portable Portable Dot Pin Marking Machine suitable for signing on metal material which size could be larger than the marking head like big pipes. Printing scope of this Portable Dot Pin Marking Machine is 90 � 20 / No curvature support. Also, this Portable Dot Pin Marking Machine has a Platform dedicated for holding on large size of job. In this Portable Dot Pin Marking Machine, the controller is connected with the marking pin assembly with 5 meter cable and supports flat marking only. The stylus pin dotting (present in the Portable Dot Pin Marking Machine) has a mark logo, and it can easily dot on the surface with high frequency and mark logo. This Portable Dot Pin Marking Machine can mark character, alphanumeric, date, numbers, series No, VIN, codes, graphs, etc.



Specifications

Controller Standalone Controller with 7 LCD Touch Screen
Marking Speed 2-3 Character / S
Marking Head Portable with Support Stand
Marking Depth 0.1- 0.5 mm
Marking Scope 90 - 20 mm / No curvature support
Pin Hardness HRA92
Work Piece Hardness allowed HRC62
Power 110 - 230 V / 50-60 Hz
Application Applicable for Metals & Non Metals
Warranty 12 Months Standard Warranty + 1 Month Extended Warranty

Additional Information

Product Code Portable Dot Pin Marking Machine (DPM306
